WS-1101MA High efficient Paper Lunch Box Forming Machine

WS-1101MA

WS-1101MA High-Efficiency Paper Lunch Box Forming Machine

High-speed and energy-saving solution for manufacturing disposable paper lunch boxes and food containers.

Overview

The WS-1101MA is a high-efficiency paper food box making machine engineered to deliver reliable production of single-compartment paper lunch boxes with low operating cost and simple maintenance.

Key Features & Benefits

  • High Productivity — Up to 75 pcs/min (depending on box size & material).
  • Energy Saving — Reduced compressed-air consumption for lower operating costs.
  • Compact Footprint — Space-efficient design for streamlined factory layouts.
  • Hot-Air Sealing — Secure sealing for PE-coated paper food containers.
  • Low Maintenance — Quick mold change and robust construction reduce downtime.
  • Material Compatibility — Supports single/double PE-coated paper (approx. 320–360 g/m²).

New Desigh & Hing Speed

Paper Meal Box Machine And Paper Lunch Box Forming Machine

      Advantage:

  1. Save 80% air power cost.
  2. Save Maintain cost
  3. Lower occupied area.
  4. Increase 50% speed.
  • Production Speed: 75 pcs/min
  • Machine Dimension: 166 (L) x 114 (W) x 209 (H)
Inquiry
WS-1101MA High-Efficiency Paper Lunch Box Forming Machine | Win Shine
Product Introduction

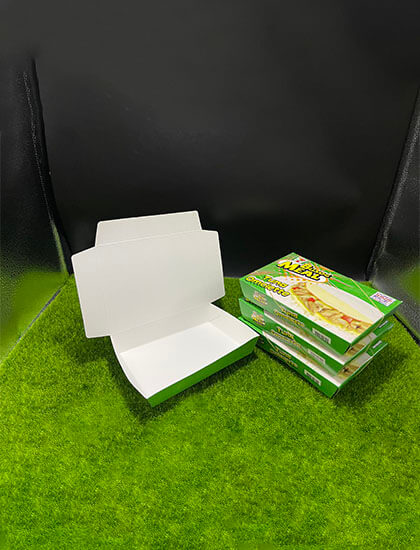

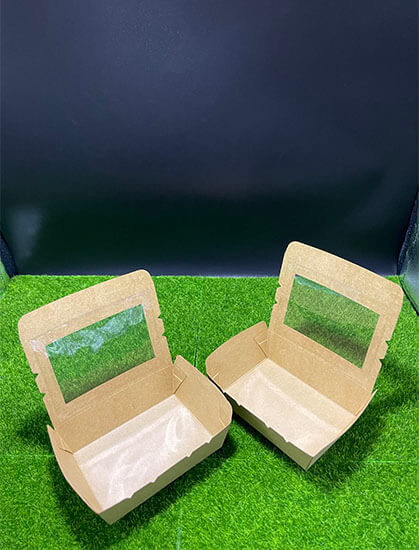

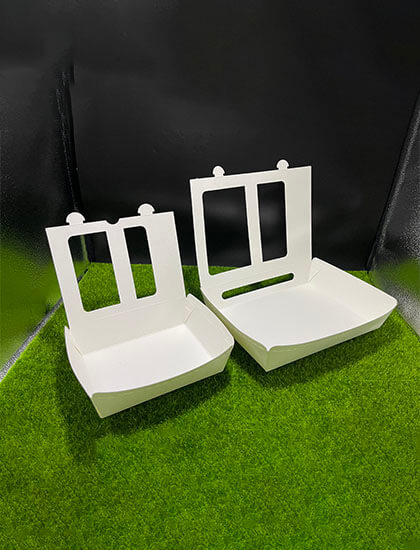

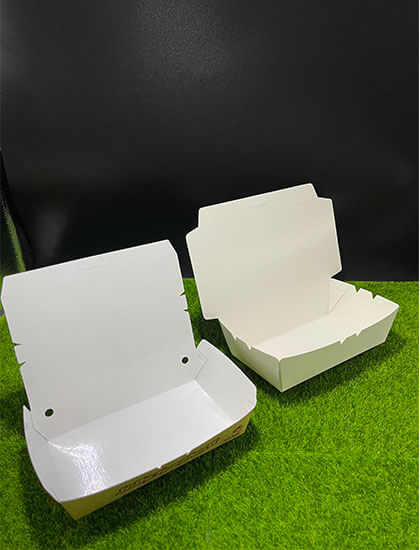

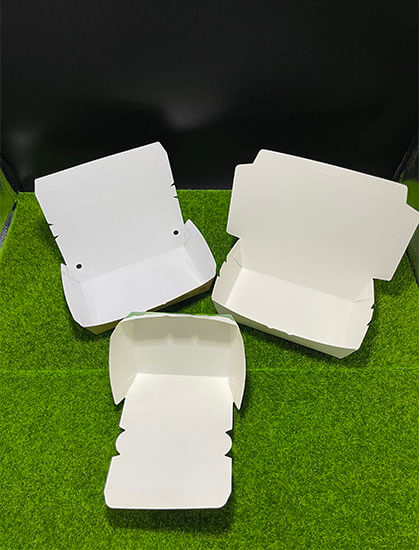

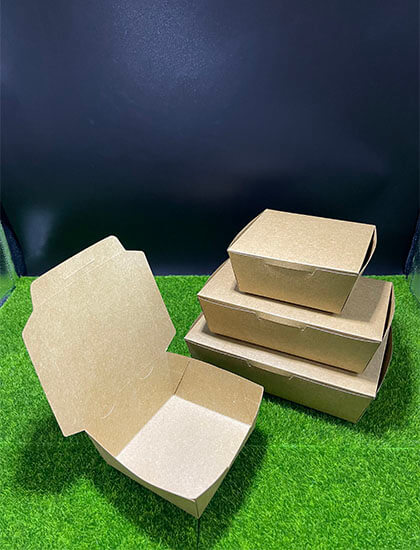

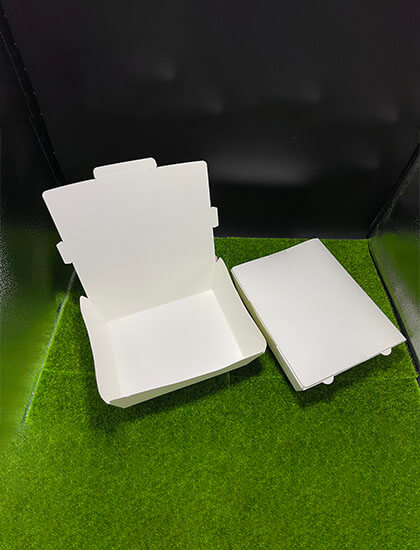

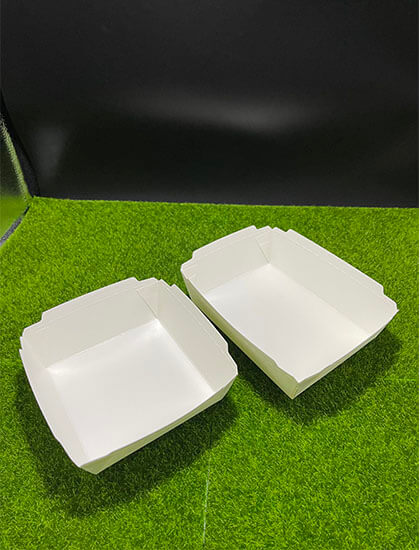

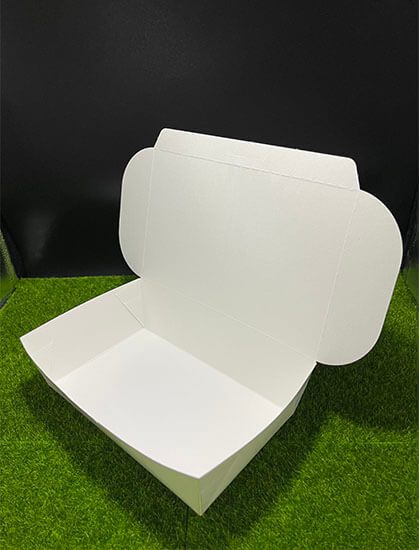

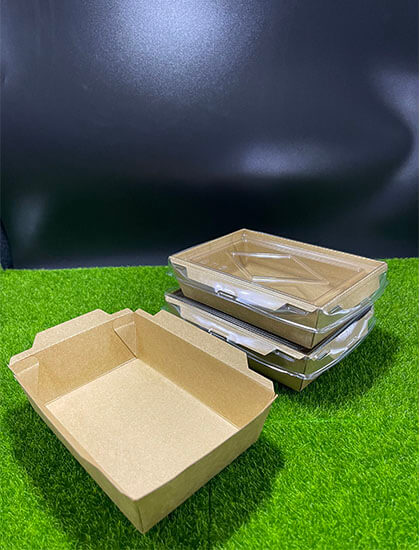

New developing up machine at WS-1101MA, the most efficient production, best to buy model for bigger production. One compartment lunch box, popular size is L size as 180X105X50mm or M size as 160X90X50mm.

Description

Specification

Model Dimension
L W H
WS-1101MA 150~185 90~115 20~43
No. WS-1101MA
Description
Production Speed (pcs/min) Max: 75pcs/min.
Paper PE Coating Single or double PE coated paper ISG-320~360 g/m²
Sealing Method Hot Air Heater
Electrical Requirement Approx 6 kw
Compressed Air Approx 100 ℓ/min
Machine Dimension (LxWxH cm) 170x245x200
Machine Weight (kgs) 1500

* Customized design in welcome.
* We reserve the right to alter specifications without prior notice.
